The new 3d mode allows for a higher geometry retention. It also enables some really cool workflows
NOTE: 3d mode is currently only supported for Revit, SketchUp, Rhino and the Web App. Itâs not supported for Vectorworks, ArchiCAD, Autodesk Forma, Allplan, or the sdk

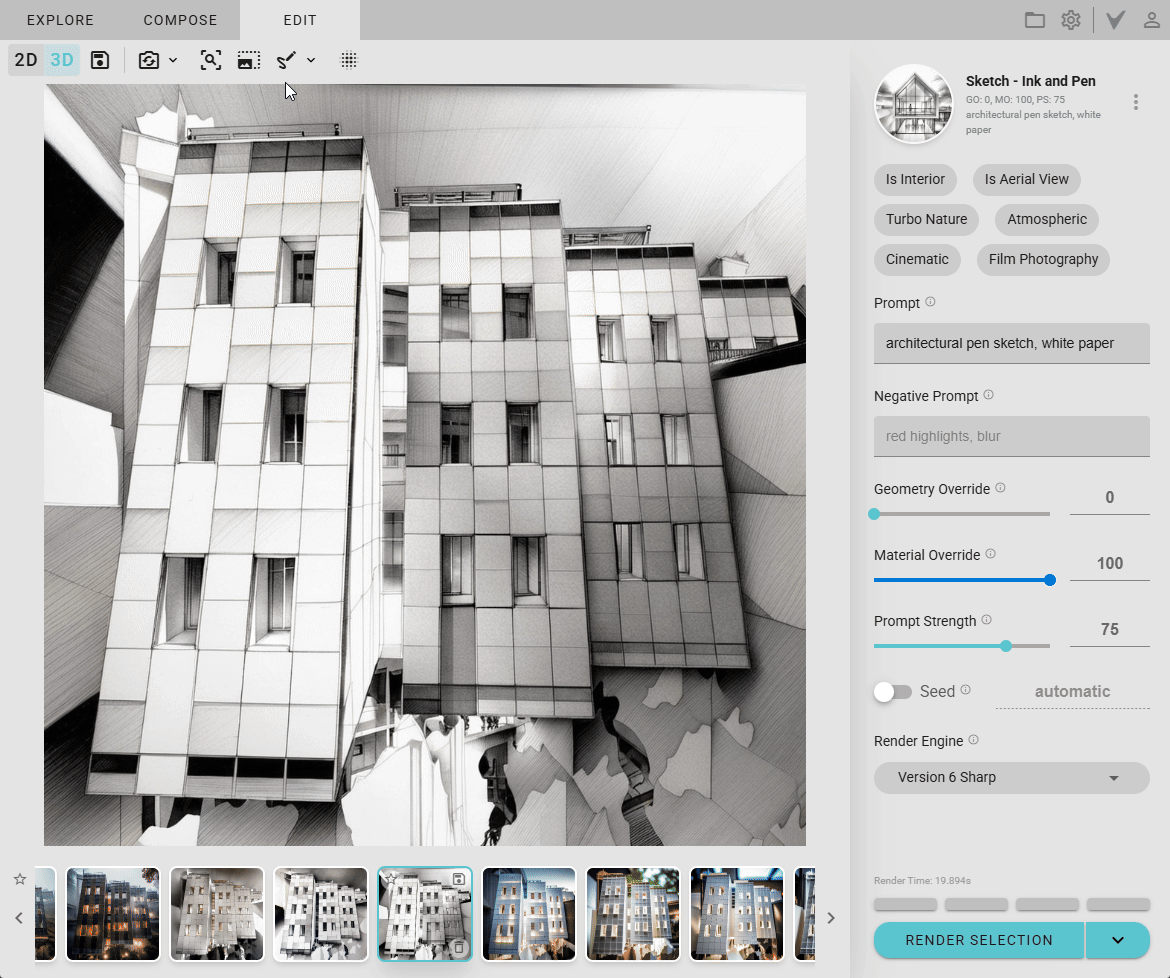

Select By Material

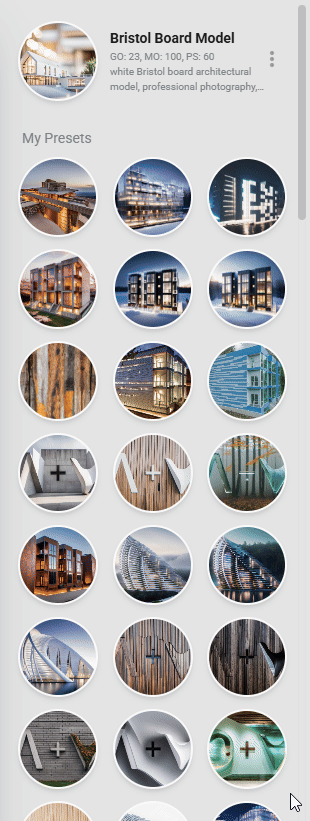

Resort Presets

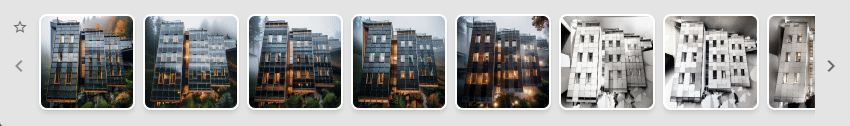

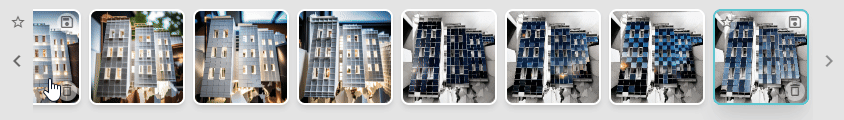

Resort Renders
Favorite Renders
Draw Multiple Shapes
Ability to draw multiple shapes with Render Selection
Recent Mask History
+ More
Features

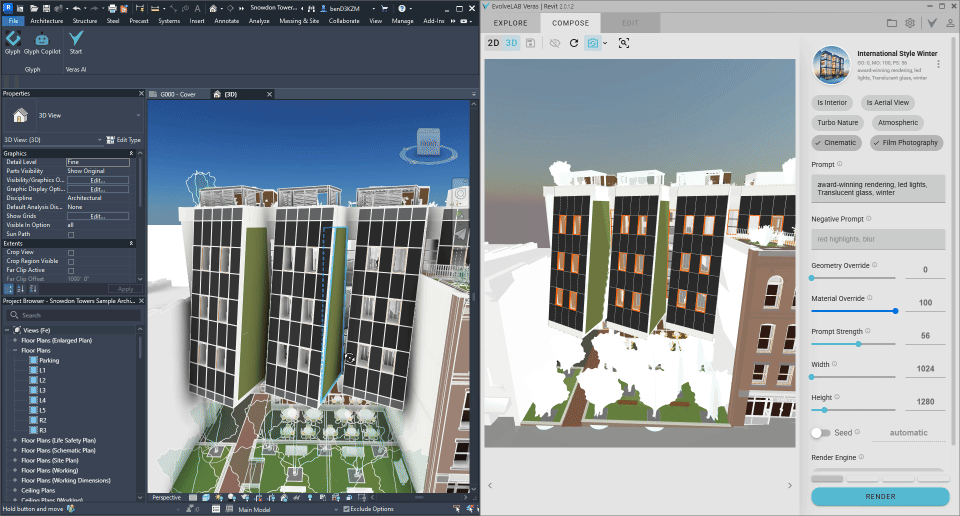

3d Mode
Zoom to extents
Sync camera to parent app
Live sync camera
SketchUp, Revit, Rhino and Web app are supported
Web app supports OBJ uploads & Axis Alignment
Updated 2d/3d toggle UI

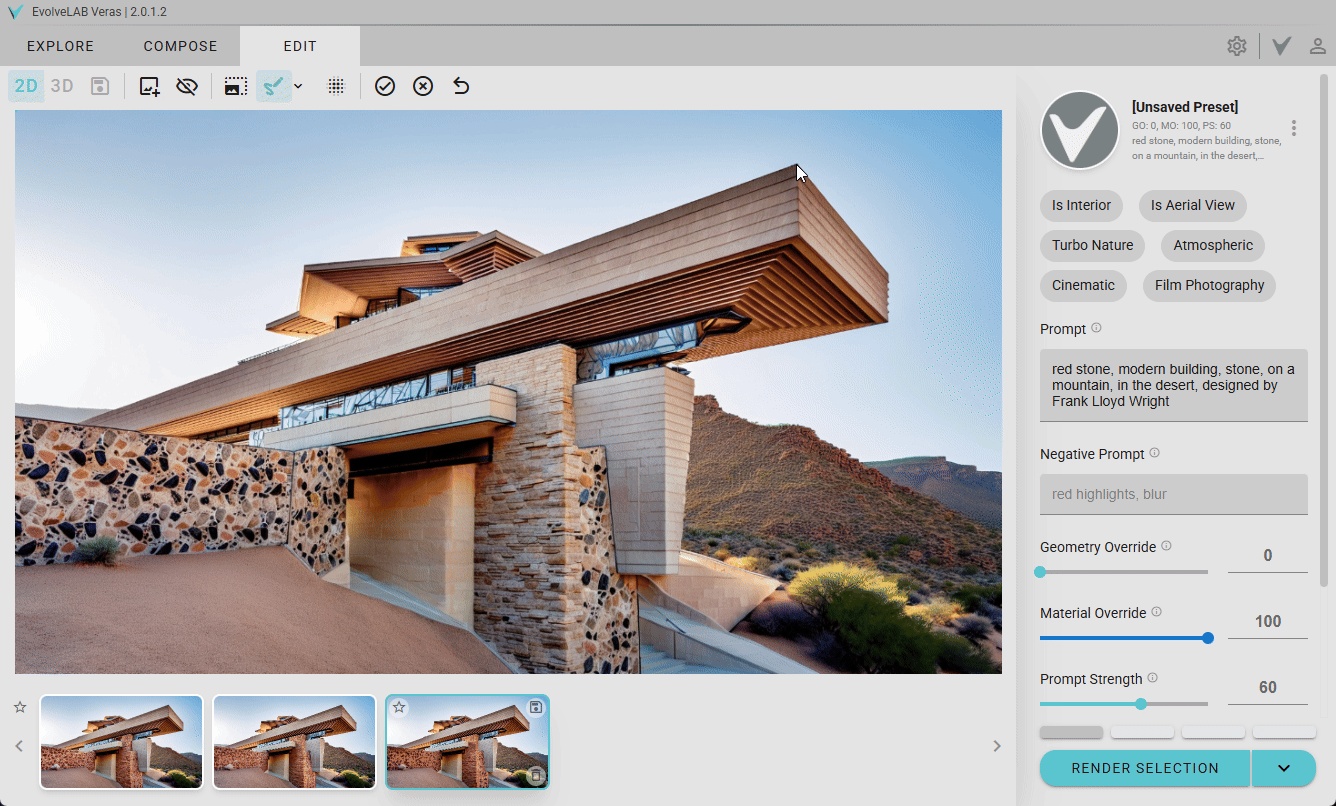

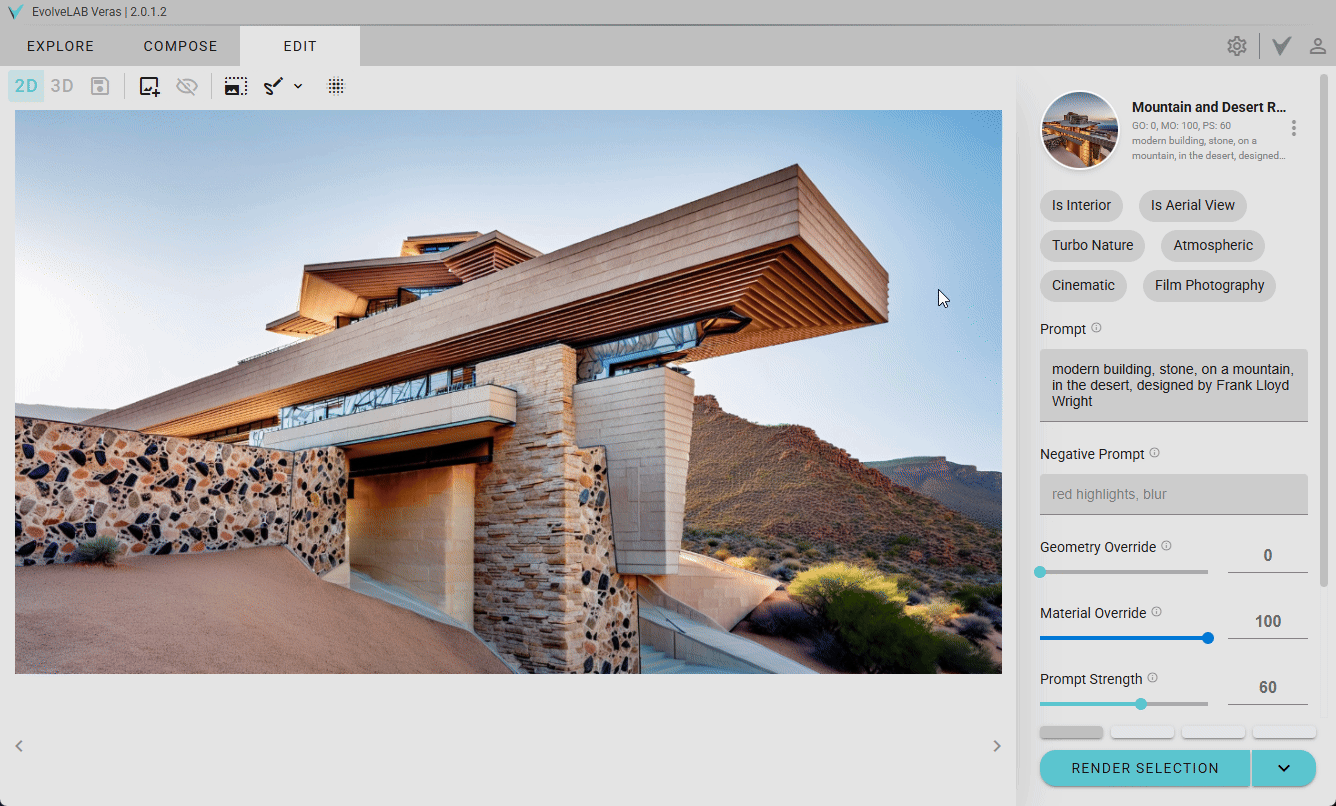

Render Selection Improvements
Undo freehand mask lines
Ability to draw all the way to the edge of the canvas
Select and deselect polygons & delete selected paths
Added user email to the trial expired page
Stability
Bug Fix: âCannot Parse Settingsâ error the first time a user logs in
Bug Fix: Render Selection Mask Cropped for Renderings over 2048 pixels
Bug Fix: On auto re-login the âLogin Formâ would briefly appear
Platform
Update Veras to be compatible with the latest Autodesk Forma updates
Security
Many security updates
Known Issues
3d mode is currently only supported for Revit, SketchUp, Rhino and the Web App. Itâs not supported for Vectorworks, ArchiCAD, Autodesk Forma, Allplan, or the sdk
3d mode large model support is accessible from the Loader 2 setting, and currently has some geometry artefacts
Loading an empty model in 3d causes an error
SketchUp - if front-face material is default and only back-face has a material, the back-face material does not load in the 3d viewer
Need to add a Field Of View setting in the 3d viewer
3d render selection cannot select unpainted materials
3d render selection cannot select the background
loading a previous mask when changing the window size has alignment issues
Experimental Features
These features are subject to change, but feel free to try them:
Hi - using Veras 2 (trial version) in Rhino7, 3d mode does not seem to work:
3d mode as in the videos above does work, I see something moving in sync with my rhino window but geometry does not come through (I can see the geometry in 2d mode)
select by material therefore also doesnât work, as there is no geometry in the 3d window
the web version did not accept my obj files from Rhino, at least I couldnât see them in the preview
My rhino file is very simple, just a set of boxes on top of eachother, could that have anything to do with it? Does Veras need solids or something?
Hi,
when I click on the 3d button my model doesnât show in the Veras window. What am I doing wrong? It says loading but nothing comes up. I work in Rhino 8.
/ean
This is an automatic update for versions 2.0.2.0 and above. For versions below 2.0.2.0, please use the link with the installer in the post above.
Updates
The 3d mode loader will now automatically select the best loading method. This should allow Veras to load 2BG+ models. However, there is still a limit to size, and weâre looking at further expanding this limit.
@eanean & @miccor - this update should address the issue you were having. If it does not, please let us know.
I had this question as well.
But if you go to the webapp you will see it updated to the latest version.
The installer versions are still not the latest.
Current latest available is 2.0.5.0 from the download link above

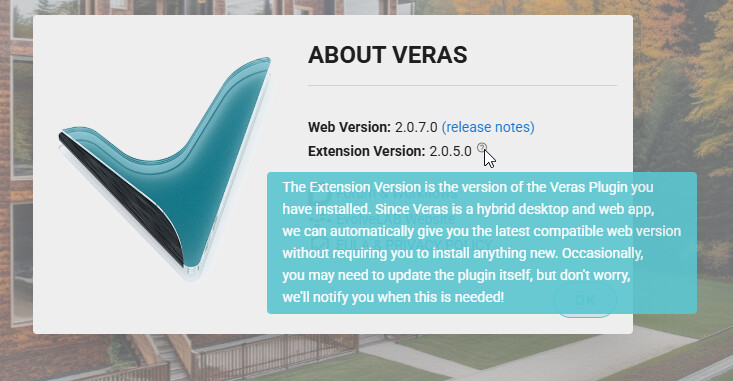

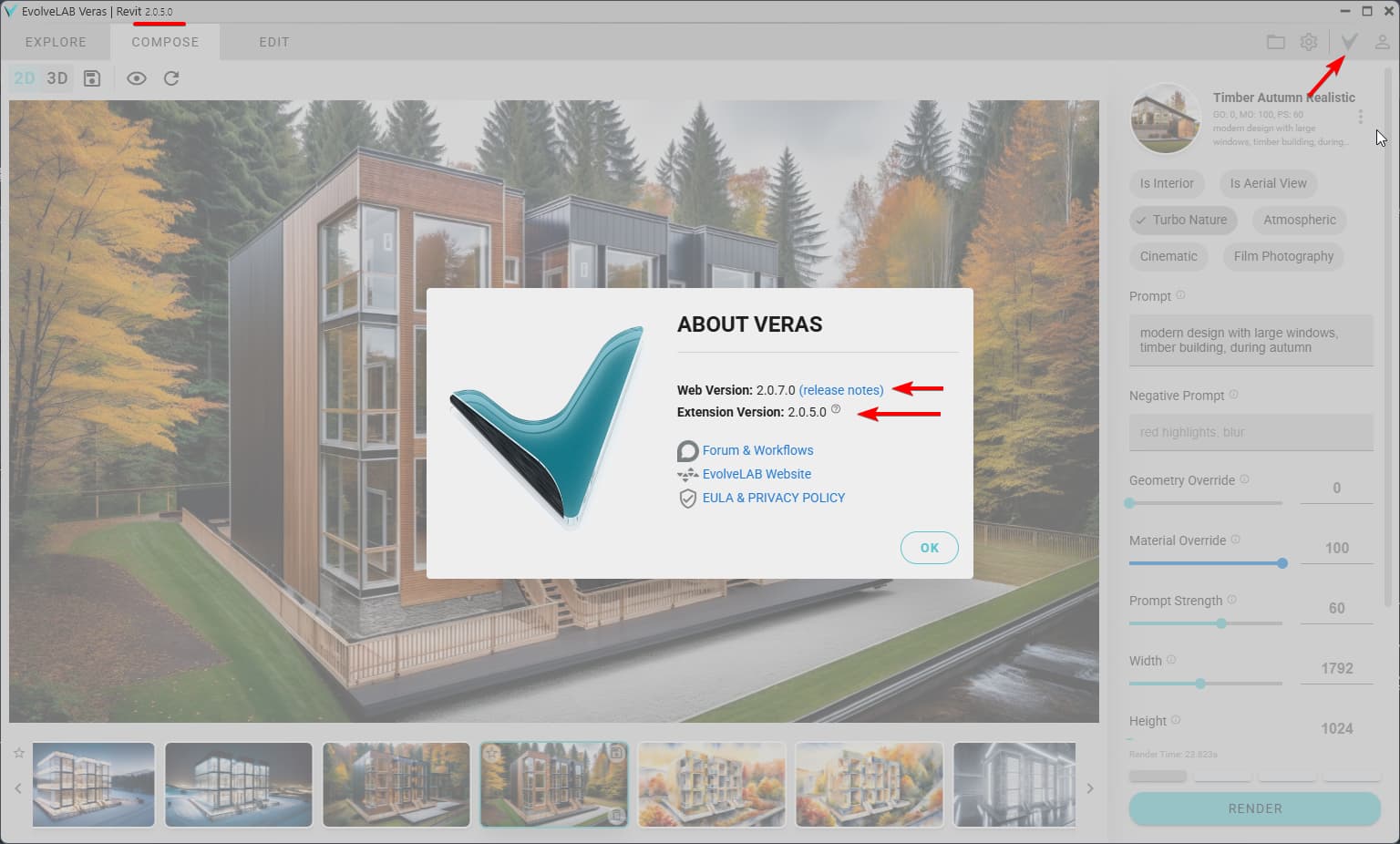

@arider & @verma - sorry for the confusion. Thereâs an Extension Version an a Web Version that you can view under the About Veras menu. A client version for 2.0.7.0 was not released, as there were no source code updates for that part of the app.
