Glyph - Release - 2.4

Glyph
1

Release Graphic
Release Graphic1920×1152 180 KB

Download: Installer

Features :tada:

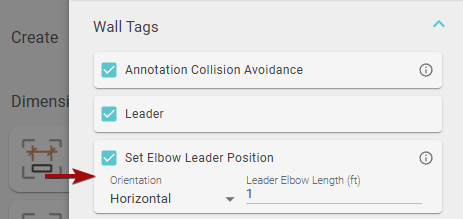

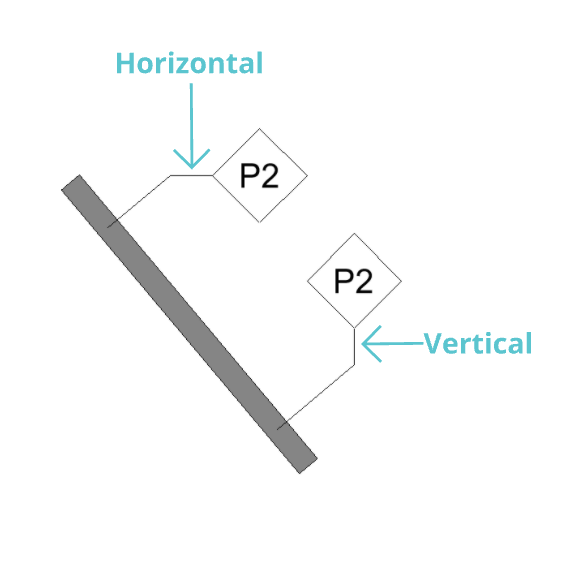

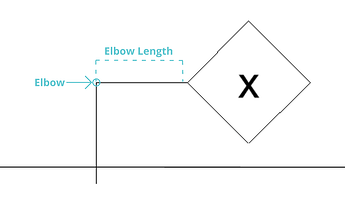

Custom Elbow Leader Position

UI
UI463×219 10.7 KB
ElbowSetting
ElbowSetting854×521 18.6 KB

  • Note: The leader setting must be enabled.

New Dimension Category

  • Room
    • You can now create dimensions from finish to finish.
    • Note: There must be at least two parallel walls in the room to create dimensions.

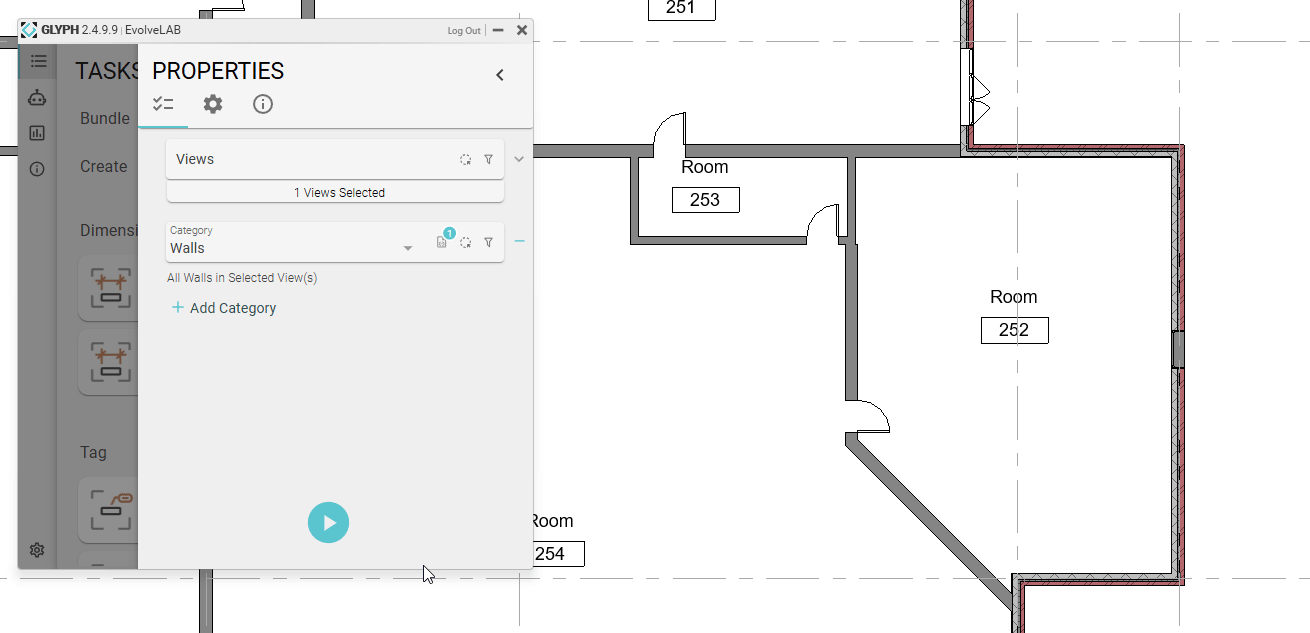

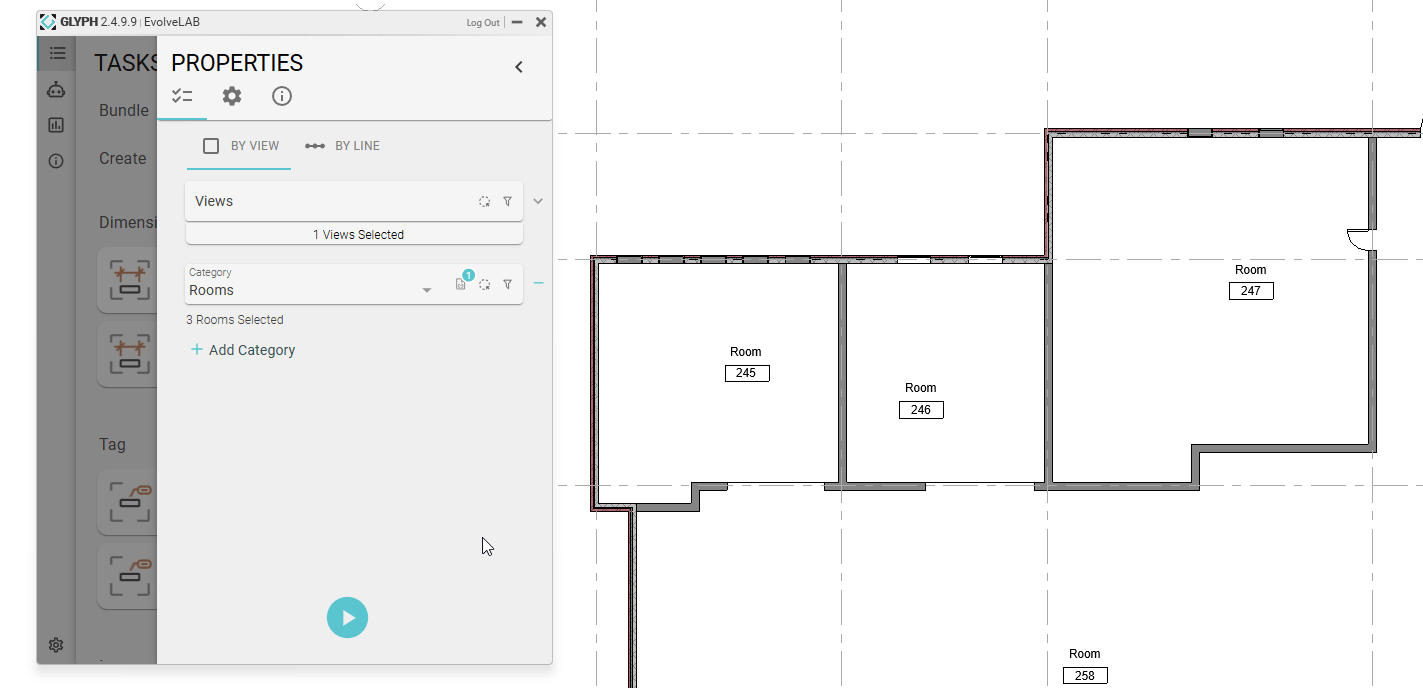

      Room Dimensions

Annotation Collision - Additional Setting

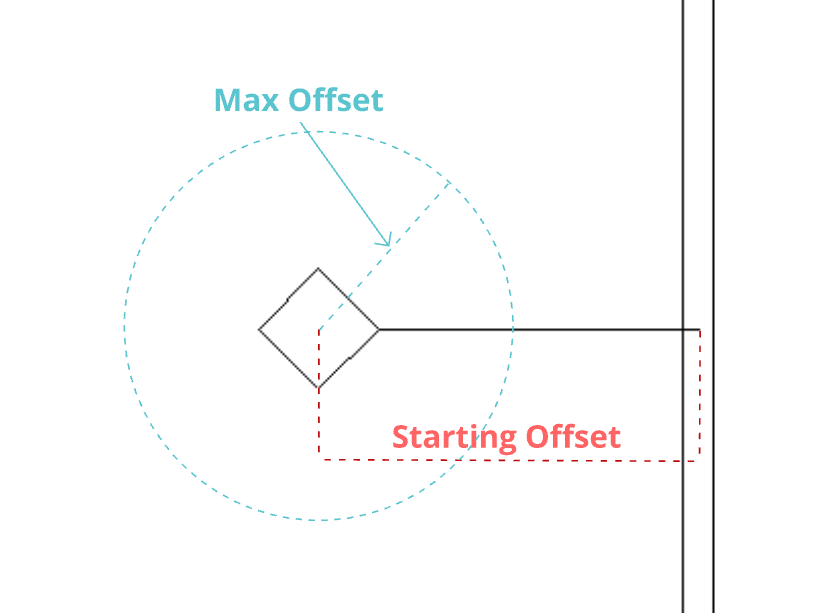

  • The annotation collision avoidance feature in the tagging tasks now includes a new setting called Starting Point Offset, which allows for even greater customization of tag placement. Thanks @Dave for the great suggestion!

UI

Graphic
Graphic826×613 14.2 KB

Improvements :roller_coaster:

  • Glyph now saves tasks and bundles to the Revit project when switching between projects and Revit families.
  • Improved clarity in UI messages.
  • Improved consistency in elevation marker rotation, especially when working with angled rooms.
  • Enhanced filtering UI to display units where applicable.
  • Glyph Copilot
    • 30% faster.
    • 25% more reliable.
    • More tasks added.

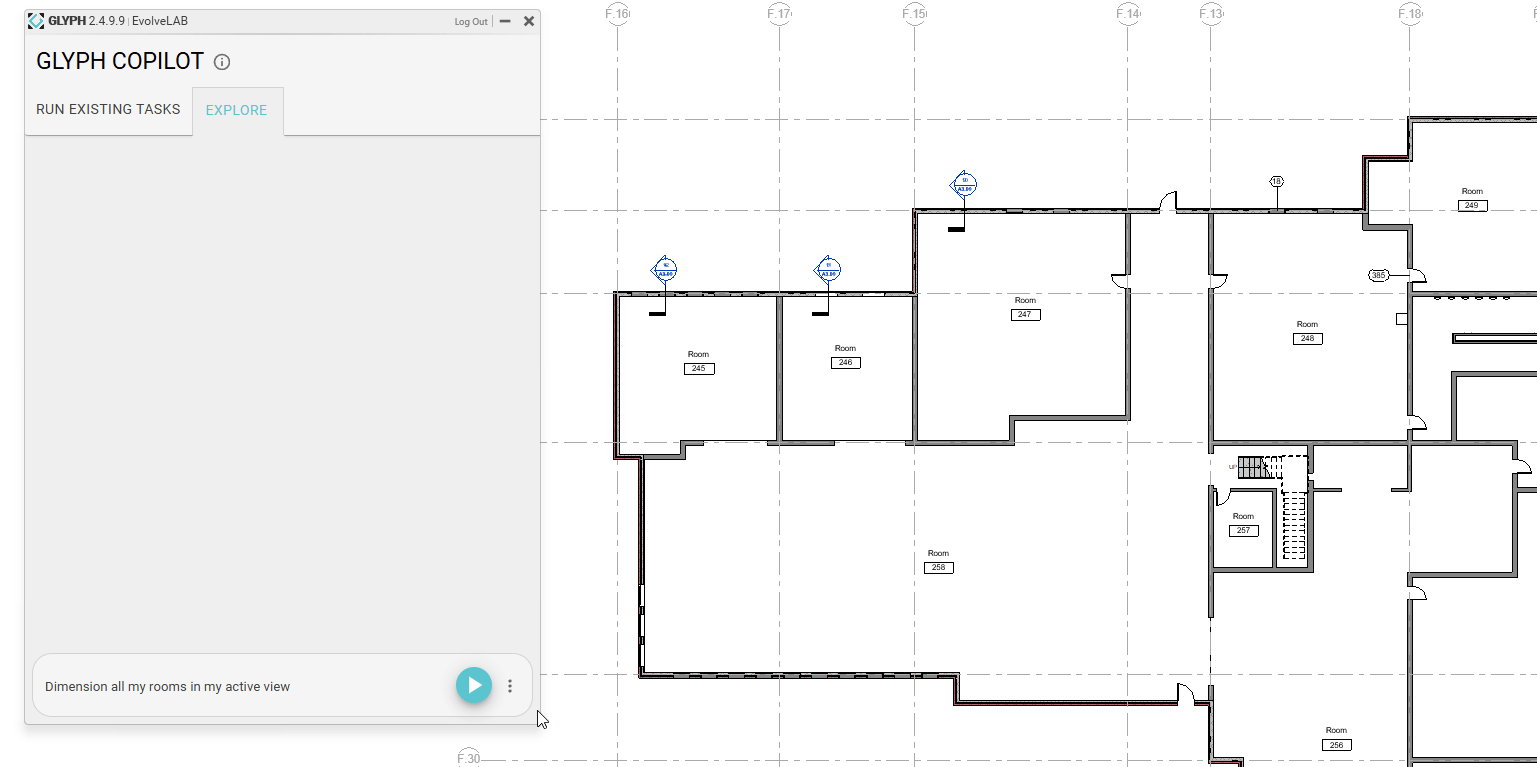

Copilot

Bugs :bug:

  • Fixed a bug that occurred when creating elevations based on linked rooms.
  • Fixed an issue in Room Schedule filters where the evaluator and value were not correctly matched in the UI.
  • Fixed annotation collision offset for meter units in Revit models.
  • Fixed filtering elements not working properly in metric models
  • Fixed filters not working properly for double parameters (e.g., length).
  • Fixed a bug that occurred when the project elevation did not match the elevation value of a level.
  • Fixed an issue where Line Mode did not create perfectly straight dimensions when dimensioning walls that were not modeled perfectly straight.
  • Fixed an issue that occurred when creating room-based elevations with the height set to ‘Bottom of Floor/Roof’, but no floor or roof was found near the room.

Revit Versions

  • Revit 2019 is no longer supported. You can download the latest installer that still supports Revit 2019 here.
  • Glyph now supports Revit versions 2020 through 2025.

Guides :memo:

  • Looking for help? Check out the Guides.

In Progress :clock1:

  • Revit 2026
  • Developing the dimension Composer feature, which will add an extra layer of customizability to your dimensioning tasks.
