Hi,
I am having trouble with the “Place views on sheets” task. Views are not being placed on the sheet in the selected location. it has been an intermittent problem during my testing. I thought I had solved it by using the scope box to create views and place them on sheets, rather than levels. Any Ideas on how to solve this one? Is anyone else having the same problem?
Hi @Johnl,
Thank you for giving Glyph a try. The view is not getting placed in the selected location because the viewport of that view(red arrows) is larger than the usable area in your titleblock(green square) (See the image below for reference).
We are working on a setting that will allow you to place the view regardless if it fits or not.
I’m curious as to how to save layouts and share them between projects? I could be doing something wrong, however I haven’t figured out how to save the layout, nor does it appear in a different project.
Good question @TrentB! The layouts will be saved to the task, then you can use the import and export buttons to export/import that task/bundle. More on how to export and import task in this link: Link
Hi @Miguel – I’ve just started using the trial, and was having trouble executing the ‘Enlarged Plans Bundle’. The ‘Create Views by Room’ and ‘Create Sheets by Room’ tasks execute fine, but the ‘Place Views on Sheets’ task does not work, though I’m told that the bundle has run successfully at the end. I’ve tried with different Layout Templates (from completely open to multiple zones), but not having any luck – none of the views wind up on the sheet. I’ve selected a handful of of Rooms as a test. What would you advise?
Hi @amh.wb,
Can you post a picture of your setting for the place views on sheets task?
Can you please confirm the enlarged plans fit on the sheet?
Thank you,
Miguel
Hi @Miguel – sure thing, here you go! This was the default setting for ‘Place Views on Sheet’ – I have the task making floor plans, ceiling plans, a 3D view, and elevations for (in this case) three different rooms (so, three sheets).
The bundle shows progress for creating the views and sheets, but then doesn’t provide an error or anything afterwards to indicate that the views have not been placed (would be great to add that!)
Here’s an example of one of the rooms, all views included on the sheet (I placed manually):
Note – I’ve just realised that the elevations have also cropped in a a strange way. They’re clearly not showing the full room correctly – would you know how to fix this?
Thank you for your help!
@amh.wb Thanks for posting a photo of your settings and titleblock.
Title Block: Could you please open the title block and create invisible lines that connect the corners? In order for us to determine the usable area of the title block, an enclosed space needs to be provided.
Elevation Crop: You can adjust the height setting (see picture below). You likely have the bottom of the ceiling/floor, but that room has no ceiling.
Thank you!
Ah, I did just see there’s a Reports section – here’s what I see for each time I’ve run the ‘Place Views on Sheets’ task:
The ‘Hover to see more’ suggested that I should change the View Title – which I did, it was previously set to ‘none’ – but even after updating, it gives the same error.
Thanks for opening the reports section. This is an easy fix. Can you please do the following:
Close Glyph
Create a new viewport type with the title turned on
Open Glyph
Run the same task.

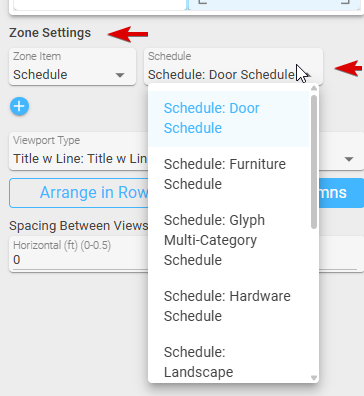

Hi @Miguel – that all worked a treat, thank you! I was able to get everything onto the sheet with the ‘Open Layout’ option; however, the new issue is if I go to make a new ‘Layout Template’, and set each of the squares to the appropriate view, it’s now resulted in this:
Where it should be, from left to right (first row) floor plan, ceiling plan, 3D view; (second row) elevations. What should I try here?
@amh.wb, I am glad that worked! It placed the views at the bottom because your zones are smaller than the size of the view you are trying to place. In the future, there will be a setting that allows you to leave the views on the zone even though it might not fit.
Hope this helps!
Hi @Miguel – great, thank you for that insight! I adjusted, and was able to get the elevations in place in the next run. The update you mentioned will be helpful – also, snapping the zones when doing a custom layout? Or to be able to type the dimensions for each zone.
One more question – thank you so much for all of your help so far! – re: 3D views and having them crop correctly. I’ve changed the settings to Crop View and turn on Annotation Crop; however, the 3D views are coming out with a range of different crops, and therefore not going to the correct zone on the sheet. What would you recommend here? (Note: I had the crop offset at both 0 and 1, and the result was the same)
Hi @amh.wb,
Great question! It’s likely that certain elements in the view, such as scope boxes, shaft openings, or other components, are still visible despite the crop box being set correctly. Could you please open the view and select everything? If the viewport (blue rectangle) appears as shown in the image, some elements (indicated by green crosses) are probably present within the view.
Yes, that does seem to be the case, @Miguel – any way to crop this (even if, in theory, it’s set correctly)? It’s unlikely that Shaft Openings would conform to one level at a time, for example. What’s the best way to handle?
@amh.wb , I usually recommend hiding scope boxes and shaft openings in the view template.
Hi Miguel,
Unfortunately that isn’t a sure fire fix. Walls also get picked up too.
It still occurs if you have a length of wall (even if that wall has been section boxed out), gets picked up, extending the cropped region much larger than it should be.
Can there be a crop region applied to the creation of these 3d views also?
Glyph works that well that even though there is still some bugginess, the time saved is exponential - even with these bugs. I often find the views that get created don’t get spat out onto the sheet properly or at all if the views too large or conflicts with the sheet size.
I typically always run glyph with the largest sheet size for me (A1) to ensure i dont run into these issues, but it’d be great to have this 100% solved. Keep up the great work.
Hi @jemc,
That’s a good suggestion; I will add it to the roadmap. We also have a feature in the roadmap that will solve the sheet packing issue you mentioned. If you have any other suggestions, please feel free to post them!
Thank you!
