Glyph - Release 3.4

Glyph
1

Release Graphic
Release Graphic1920×1137 309 KB

Download: Installer

Features :tada:

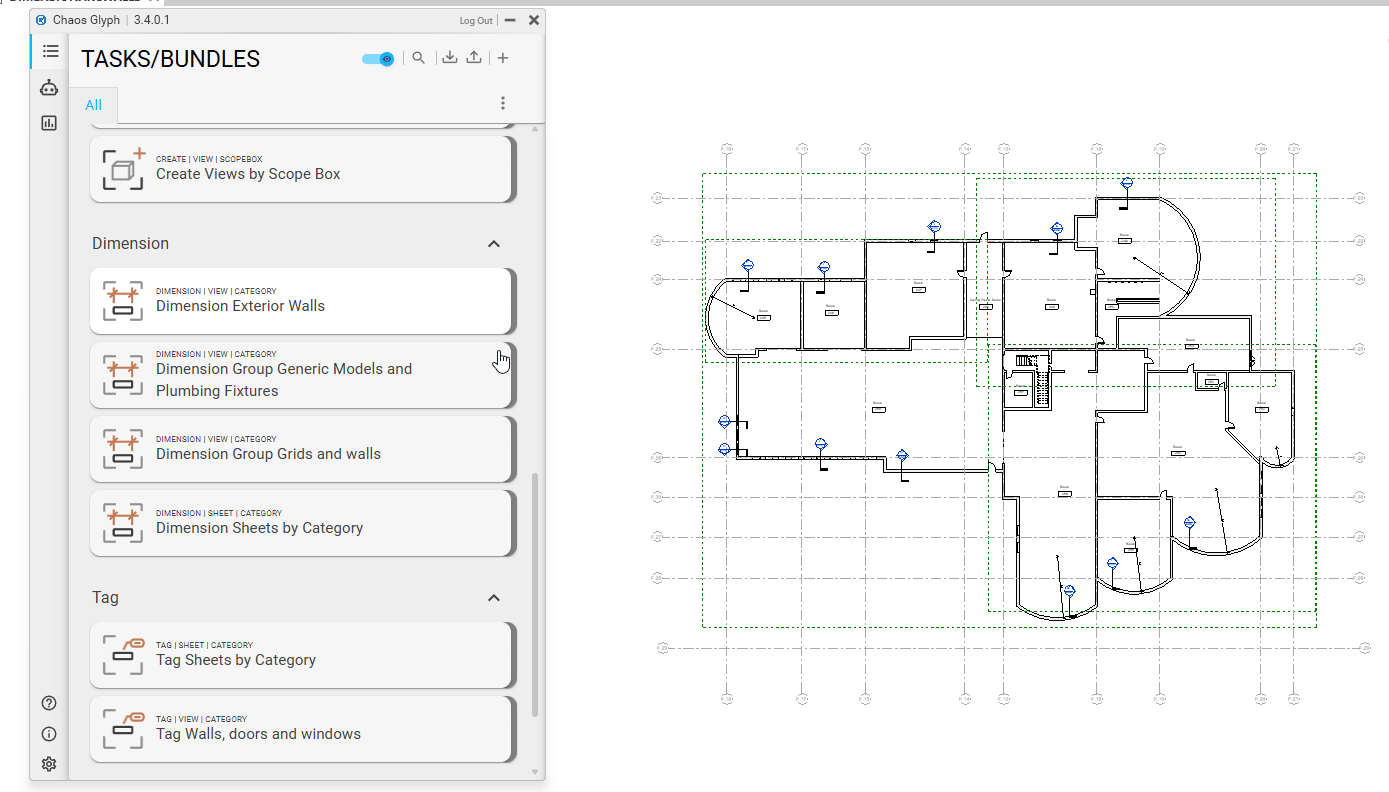

Arc Wall Support

Revit_5MEDBygECb

Note: Available in Revit 2025+

Improvements :roller_coaster:

  • Licensing improvements
  • Added “type name” to the assembly parameter list
  • Added View Family Type to the assembly part list schedule, material takeoff schedule, and category schedule
  • Detail views can now be dimensioned (Assembly views)

Bugs :bug:

  • Fixed dimension selection for linked elements
  • Fixed assembly filters not working properly (elements were not being auto-selected)
  • Fixed issue where the Zone Item “None” value was not working properly

Guides :memo:

1 Like
2

GLYPH 3.4.0.2

To install the latest version, please click the link above.

Improvements :roller_coaster:

  • Improved the login process with the new Chaos login.

Bugs :bug:

  • Fixed Creating, dimensioning, or tagging rooms within the same bundle resulting in unnecessary sheets.
  • Fixed the last row of layout rows not saving correctly.
  • Fixed doors failing to dimension correctly in elevation views when using specific families
3

GLYPH 3.4.0.3

To install the latest version, please click the link above.

Bugs :bug:

  • Fixed “Failed to initialize the add-in Chaos Glyph” error.
