Glyph - Release 3.3

Glyph
1

Release Graphic
Release Graphic1920×1137 341 KB

Download: Installer

Features :tada:

Assemblies support

Assembly views

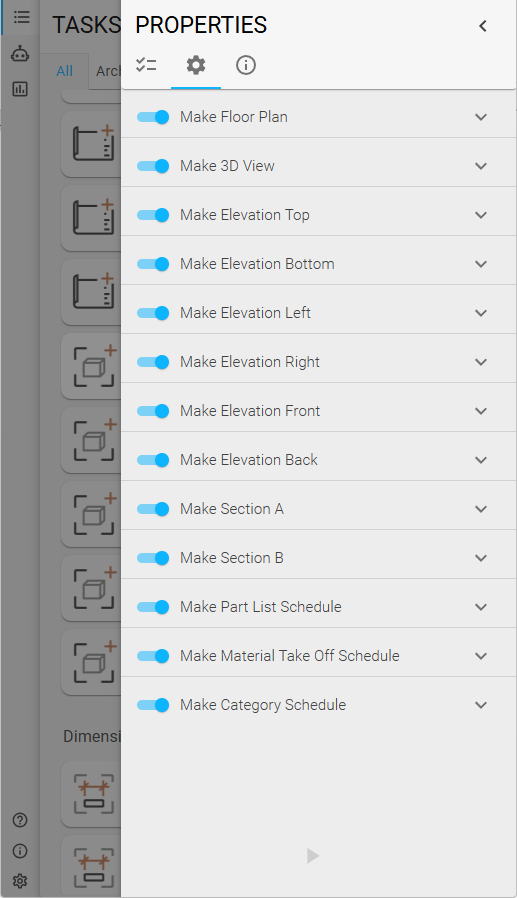

You can now generate the following Assembly views

  • Floor plan
  • 3D View
  • Elevation Top
  • Elevation Bottom
  • Elevation Left
  • Elevation Right
  • Elevation Front
  • Elevation Back
  • Section A
  • Section B
  • Part List Schedule
  • Material Take Off Schedule
  • Category Schedule (from the assembly)

image517×898 41.5 KB

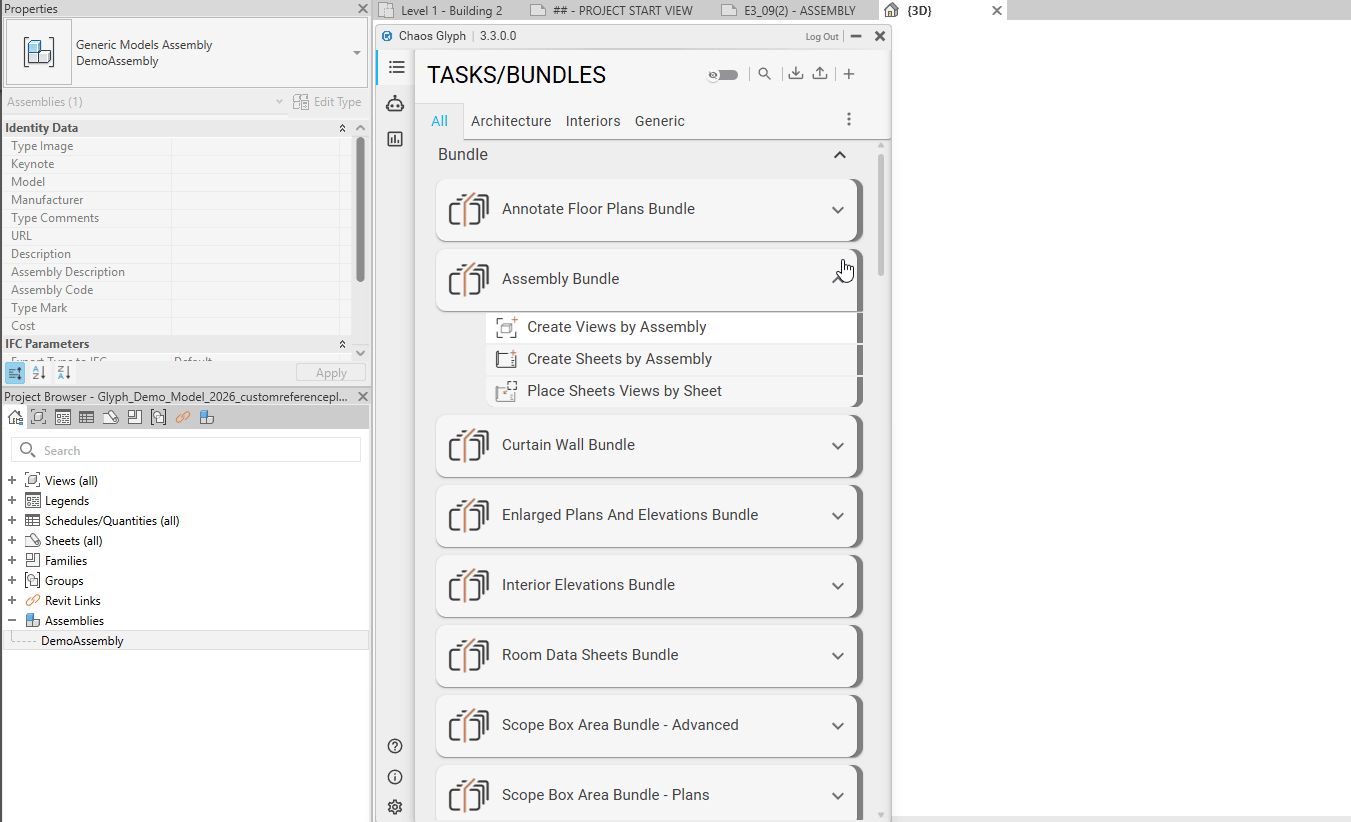

Bundle

Assembly sheets
Automatically create sheets for Assemblies and place generated views.

New settings/UI

  • Avoid duplicate views and sheets

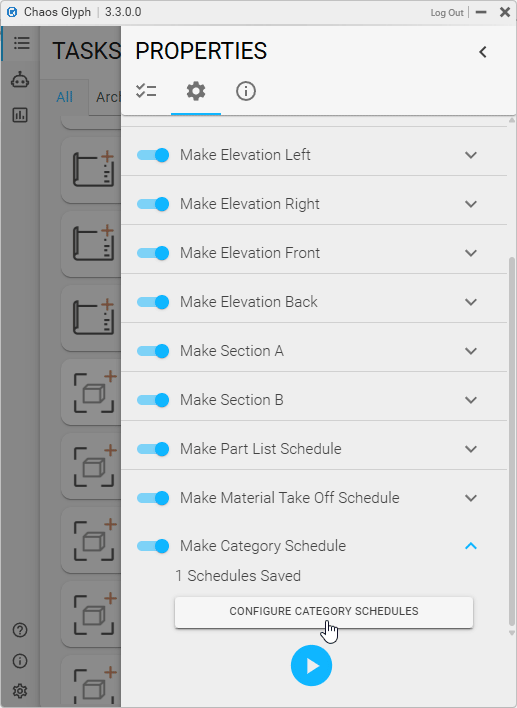

  • Assembly Category Schedules

    • Create multiple schedules of the same category.
    • Assign different view templates to each schedule.
      wutE6iMfCw

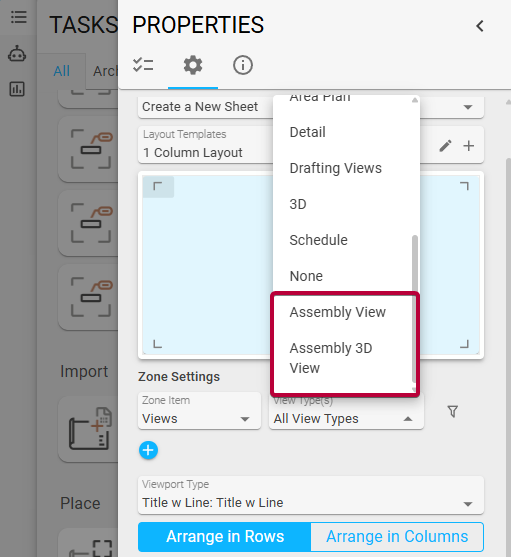

  • Place Views on Sheets – New View Item Filters

    • Note: In Revit, Assembly views are treated as Detail Views except shedules and 3D View.
      image511×557 34.7 KB

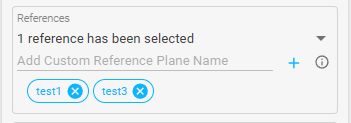

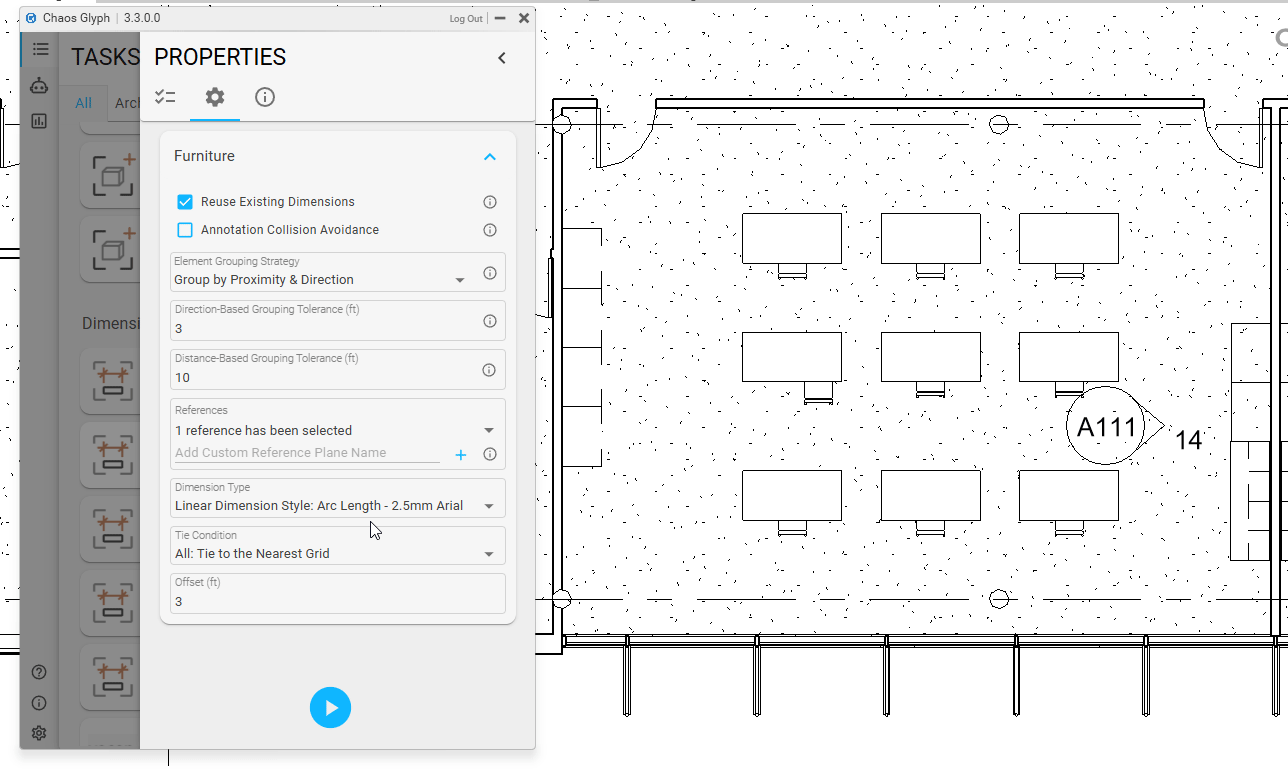

Custom Reference Plane Selection
You can now type and use custom reference planes, in addition to the standard Revit reference planes.

Improvements :roller_coaster:

UI

  • Improved task addition to Bundles
  • Improved Bundle creation workflow
  • Bundles are now automatically associated with the active tab

Glyph AI Assistant

  • 15% faster

Bugs :bug:

  • Fixed issue where the “All” tabs appeared twice
  • Fixed issue with Import Sheets by Spreadsheet – Parameter Setter sheet collection

Guides :memo:
