Glyph - Release 2.7

[Miguel]

Download: Installer

Features

Tagging Improvements

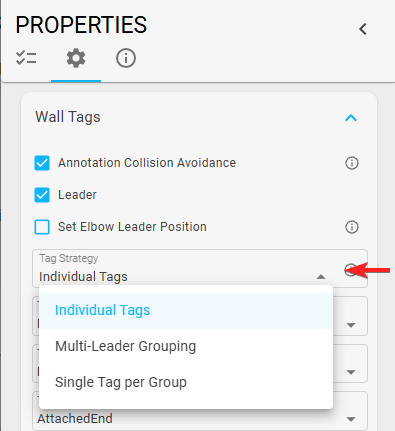

Tag Strategy Setting Added

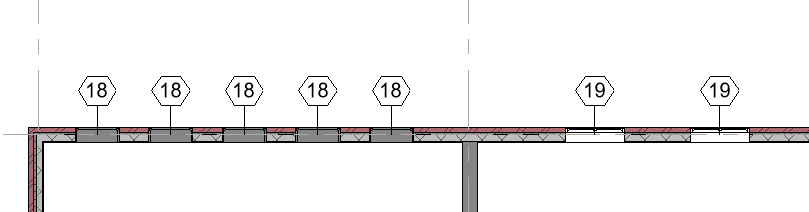

• Individual Tags: Places an individual tag on each element separately.

  •

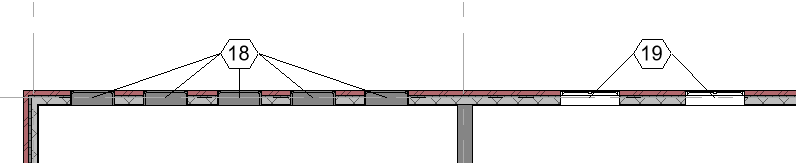

• Multi-Leader Grouping: A single tag with multiple leaders connecting to nearby similar elements.

  •
  • Available in Revit 2022+ only
  • Note: Leader setting must be turned on

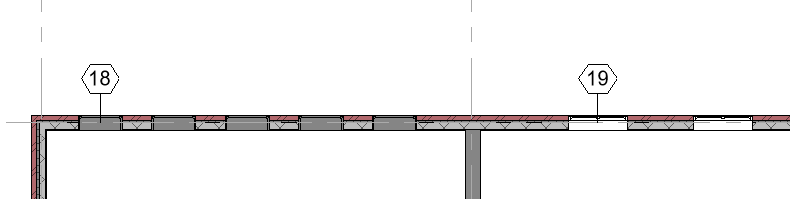

• Single Tag per Group: One tag with a single leader representing all nearby similar elements.

  •

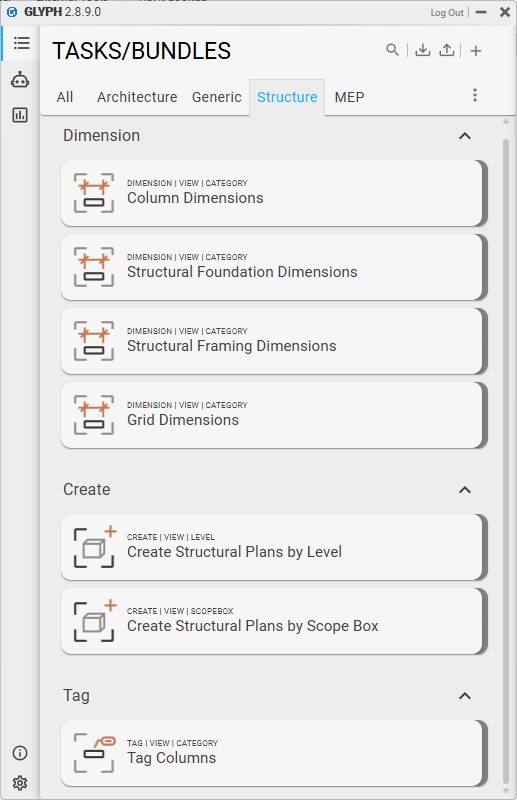

UI - Tabs

• Organize your tasks and bundles into separate tabs.


Improvements

• Glyph now avoids tagging elements that are barely visible in elevation views.
• Improved results for interior wall dimensions.

Bugs

• Fixed curtain wall dimensions when tie to hosted level is selected
• Fixed saving and using metric units across all task settings.

Guides

• Looking for help? Check out the Guides.
• Quick start guide
• Additional Resources

[Miguel]

GLYPH 2.7.1.0

To install the latest version, please click the link above.

Improvements

• More premade tasks/bundles by discipline

  • Added 22 new premade tasks that appear when Glyph is opened in a new project. These tasks are organized by discipline.
  • Examples:

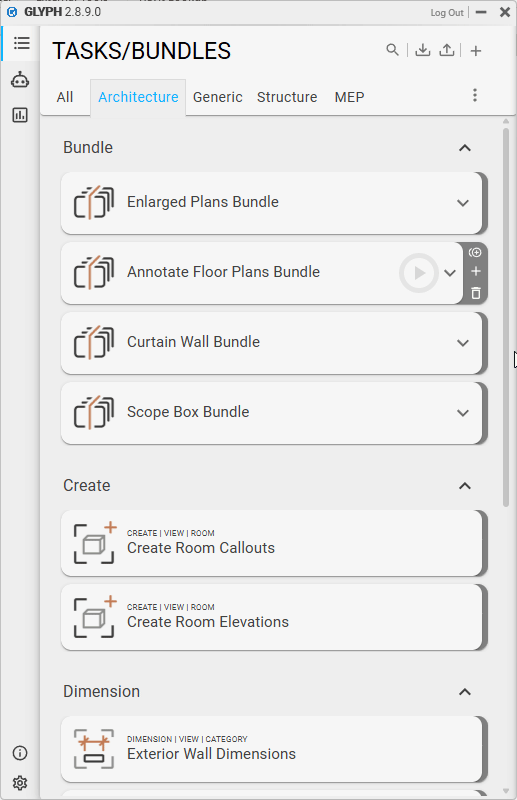

    • Architecture
      •

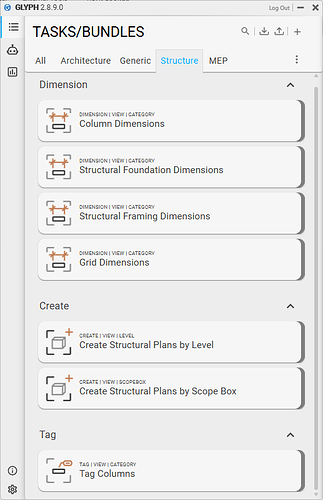

    • Structure
      •

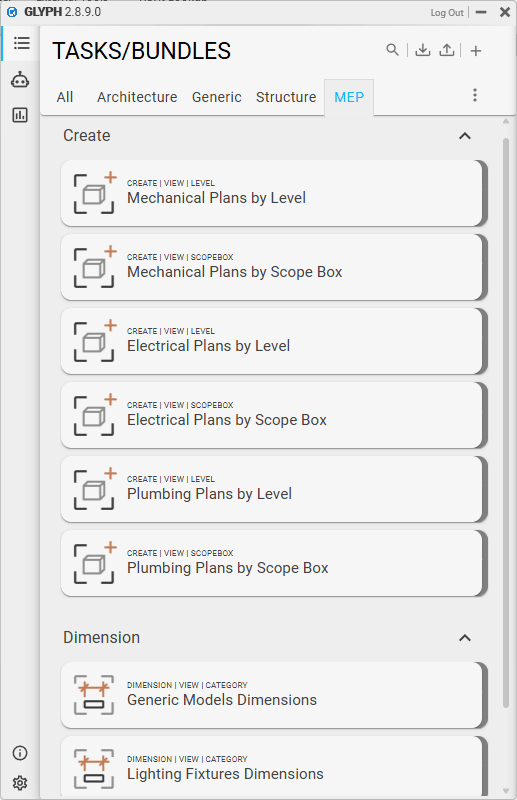

    • MEP
      •

• Languages

  • Most settings and premade task names are now available in all languages supported by Glyph.

Bugs

• Fixed an issue where “hosted level not found” did not create a dimension.

[Miguel]

GLYPH 2.7.1.1

To install the latest version, please click the link above.

Bugs

• Fixed an issue with graphics that occurred when running dimensioning tasks while Annotation Collision Avoidance was enabled.

[Miguel]

GLYPH 2.7.1.2

To install the latest version, please click the link above.

Improvements

• Improved licensing UI messages.

Bugs

• Fixed an error that occurred when running Tag Sheets by Category with the Doors category selected.
