Glyph - Release - 2.3

Glyph
1

Glyph 2.3 Release Graphic
Glyph 2.3 Release Graphic1920Ă—1152 195 KB

Download: Installer

Features :tada:

New Dimension categories

Mechanical

  • Air Terminals - Multiple grouping options available
  • Ducts
    - Duct Length
    - Duct to Datum Grids:
  • Mechanical Equipment

Electrical

  • Cable trays
  • Electrical Fixtures - Added new grouping settings
  • Electrical Equipment
  • Lighting Fixtures - Added new grouping settings

Plumbing

  • Pipes
    • Two Dimension Options:
      • Pipe Length
      • Pipe to Datum Grids
  • Plumbing Fixtures - Multiple grouping options available
  • Plumbing Equipment (Only available for Revit 2023+)

Improvements :roller_coaster:

  • Wall tags are now consistently placed on the exterior side of walls.
  • Improved consistency in floor dimensions and added support for “By Face” openings.

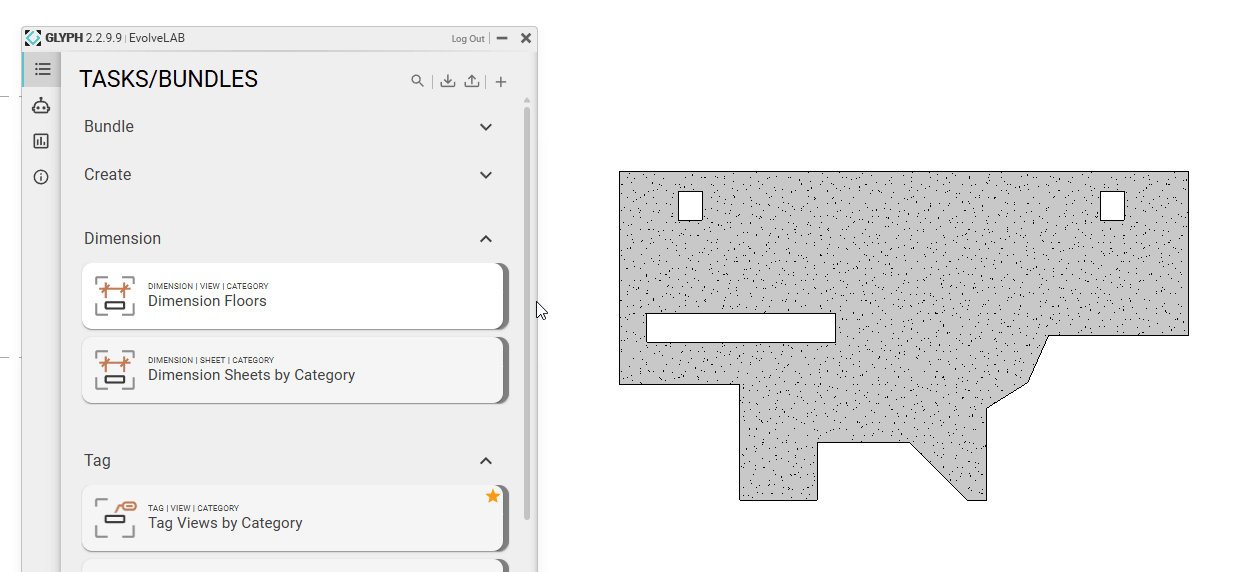

    • Dimension floors
  • Improved active view selection

Bugs :bug:

  • Fixed the exterior/interior “View Orientation” setting for walls.
  • Fixed annotation collision avoidance affecting tie conditions during dimensioning.
  • Fixed floor dimensions not capturing openings created “By Face.”
  • Fixed Revit 2025+ “pick elements” feature not working

Examples :down_arrow:

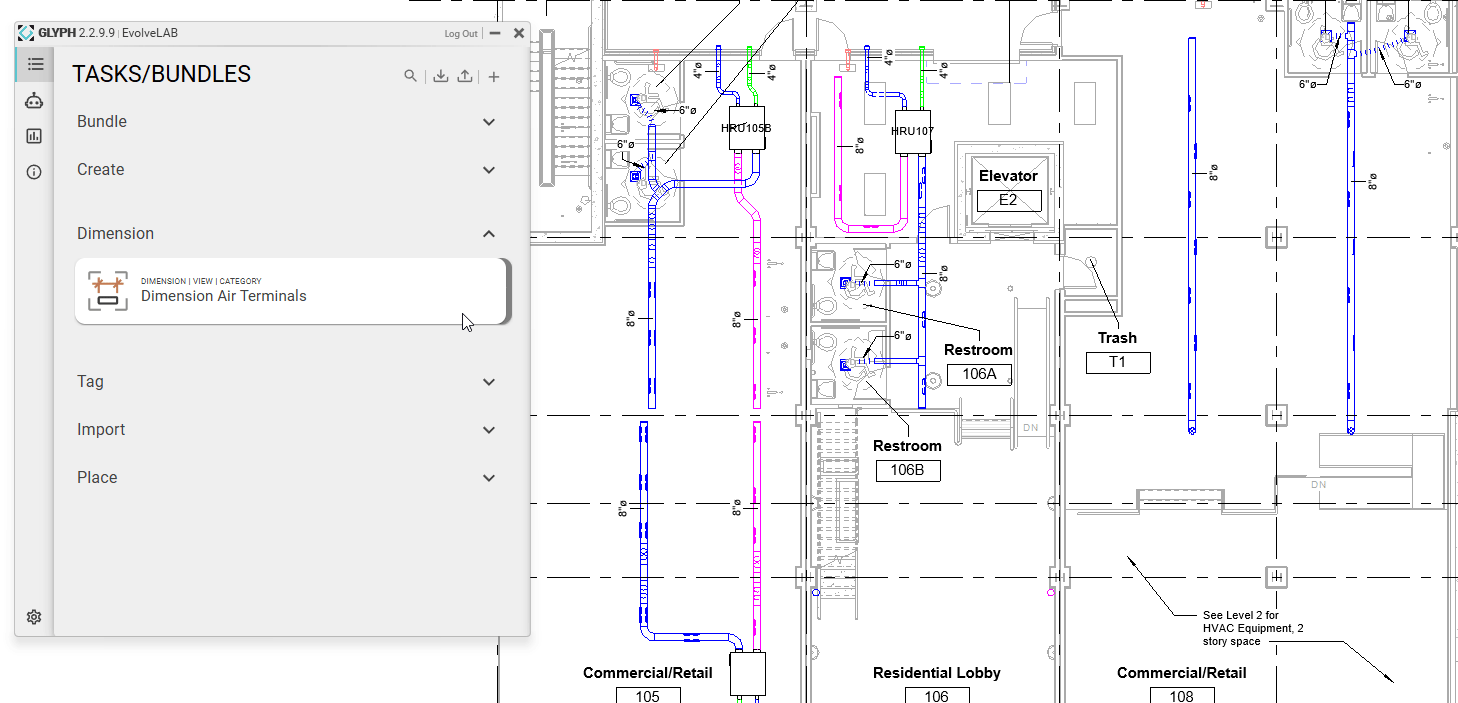

  • Air Terminals Dimensions
    • Dimension Air terminals

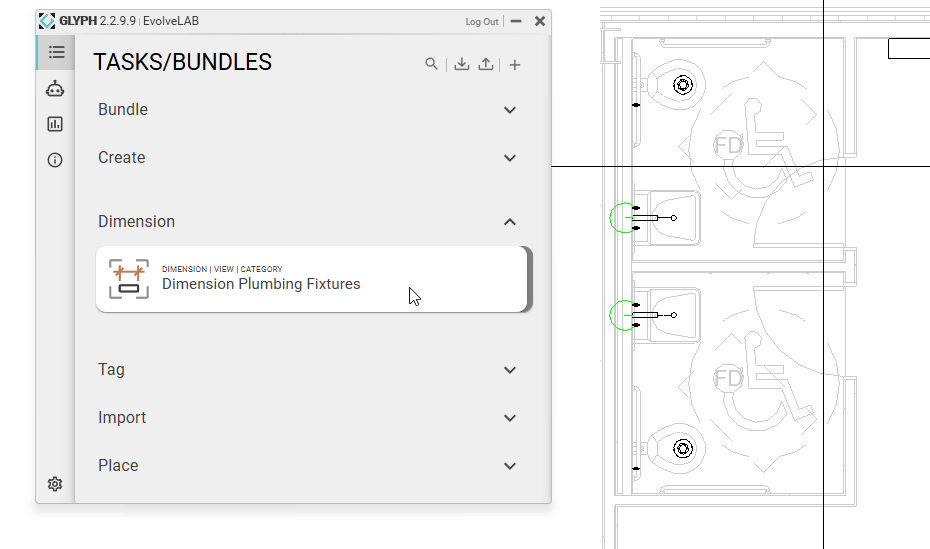

  • Plumbing Fixtures Dimensions
    • Dimension Plumbing Fixtures

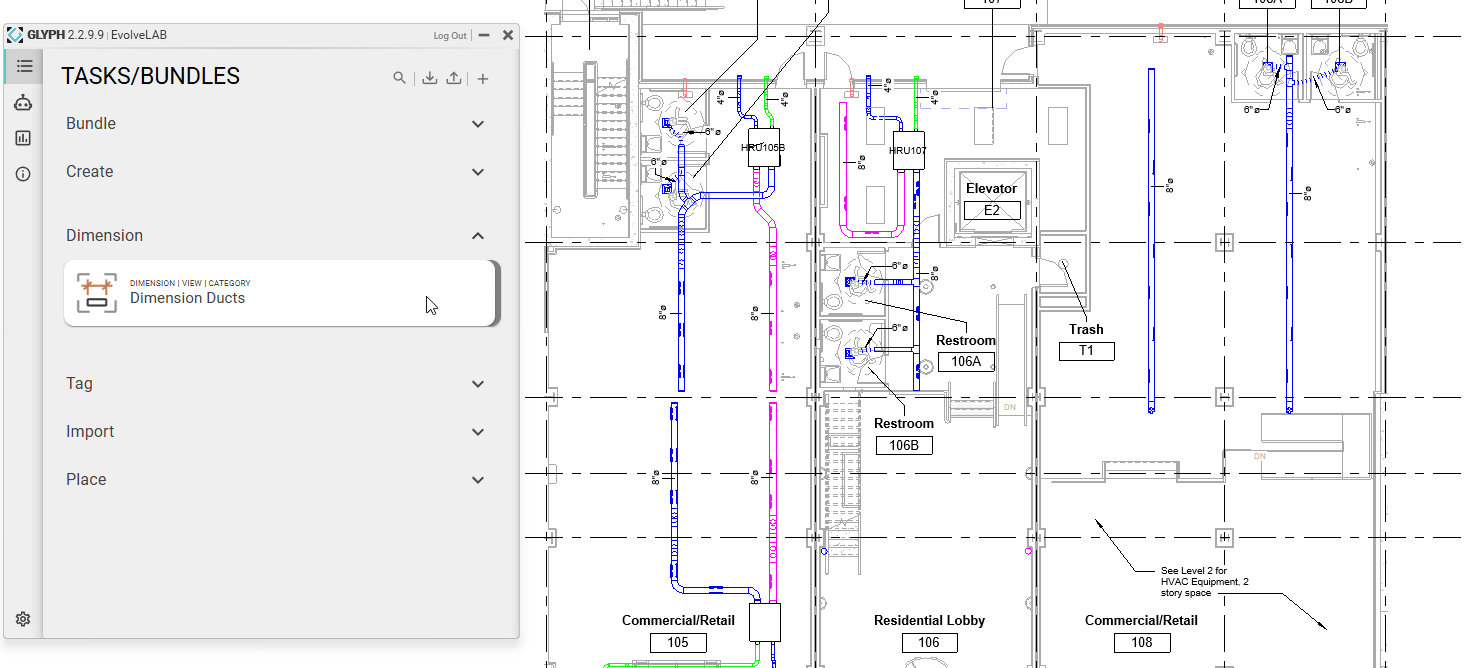

  • Duct Length Dimensions
    • DimensionDuctLength

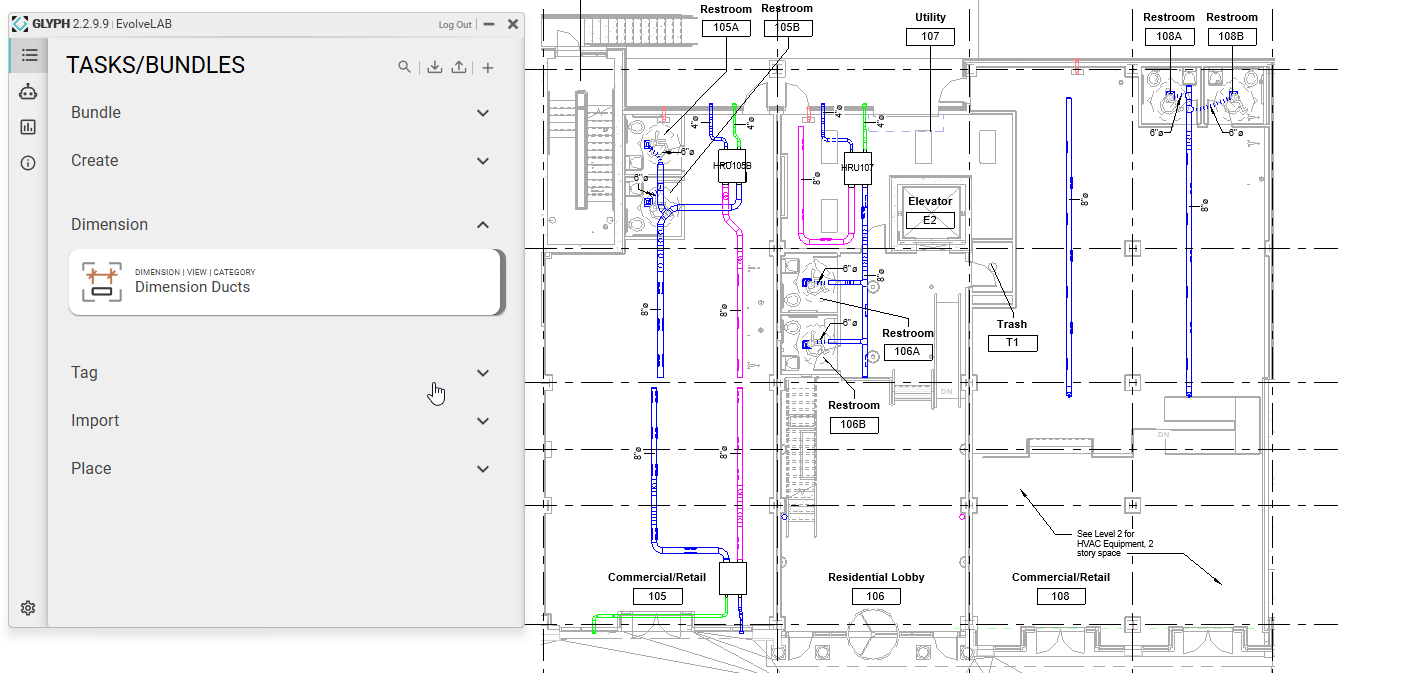

  • Duct To Datum Grids Dimensions
    • DimensionDuctsToDatumGrids

Guides :memo:

  • Looking for help? Check out the Guides.

In Progress :clock1:

  • Revit 2026
  • Developing the dimension Composer feature, which will add an extra layer of customizability to your dimensioning tasks.
  • Room Dimensions (Finish to finish)
  • Custom Tag “Elbow” position
