Placing views on Sheets issue - When I run Place views on Sheets to place Floor plan and Elevation views, only the Floor plan is placed on the Sheets.

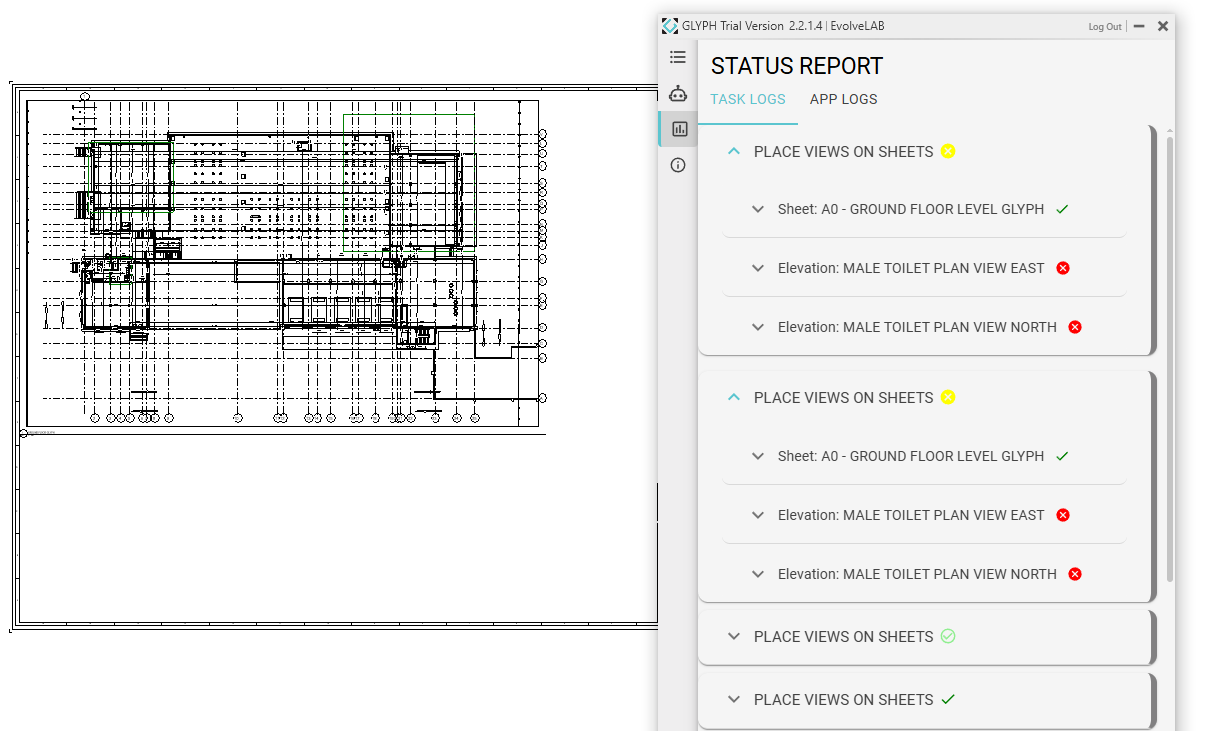

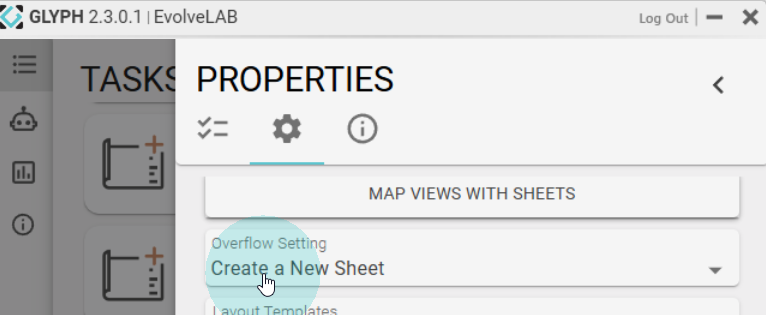

Are the elevations placed off sheet below? They will not be placed if the zone is not large enough to host them. You could confirm this by changing the settings to create a new sheet. Not that it’s the desired solution but it would confirm they are too big for the zone.

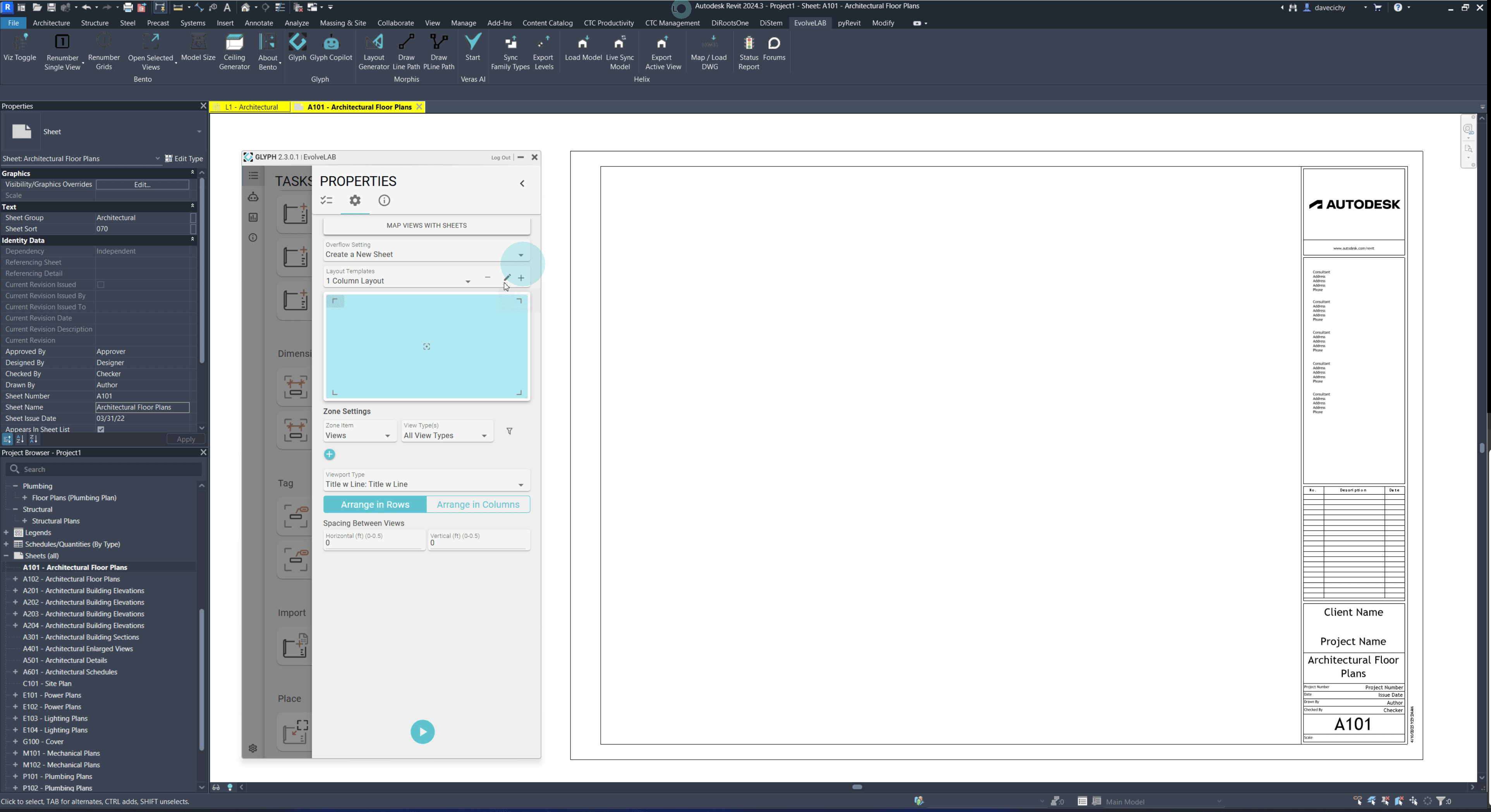

Just to explain how things are working. The blue area (zone) displayed on the right represents the largest white space of the title block.

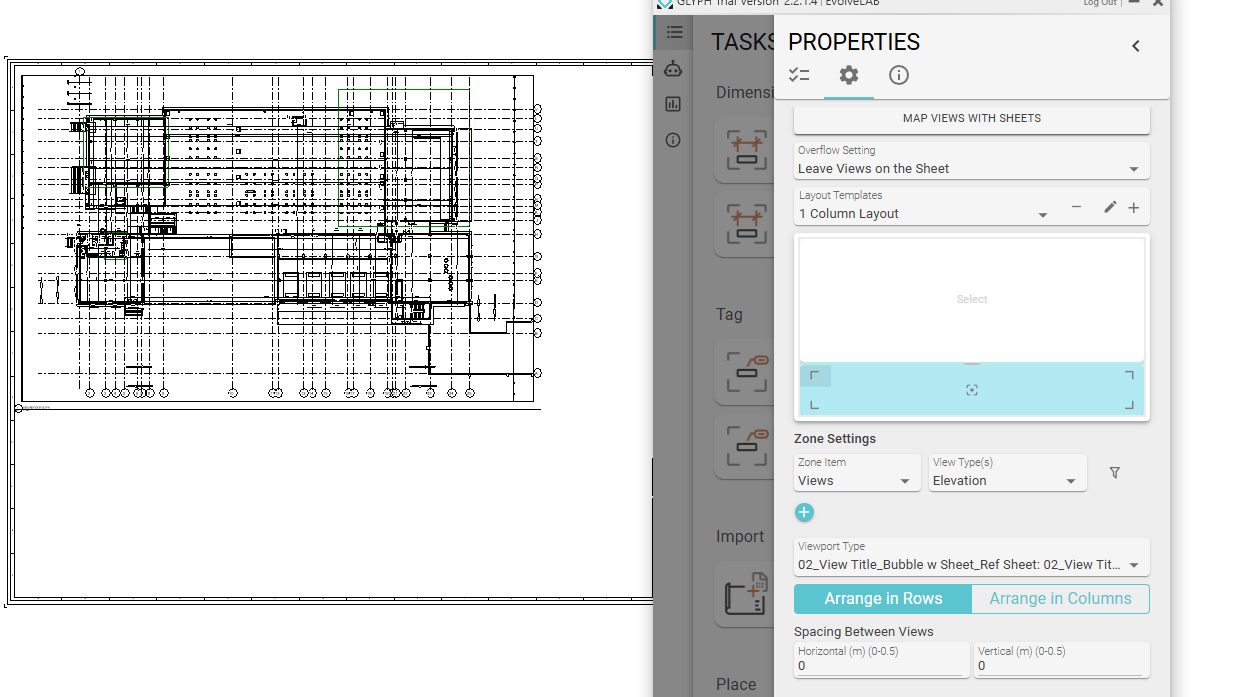

If you jump into Edit Layout you will be able to see the exact % that you are allocating to that area for each zone. In each zone you will see a 100x30 or something to that effect. That is the % of the overall space that its allocating.
Sorry if its long winded, just wanted to give you more context to how the Place Views on Sheets automation works for when you adjust it.
