Dimensioning pipework not working for horizontal pipes in plan view

Glyph
1

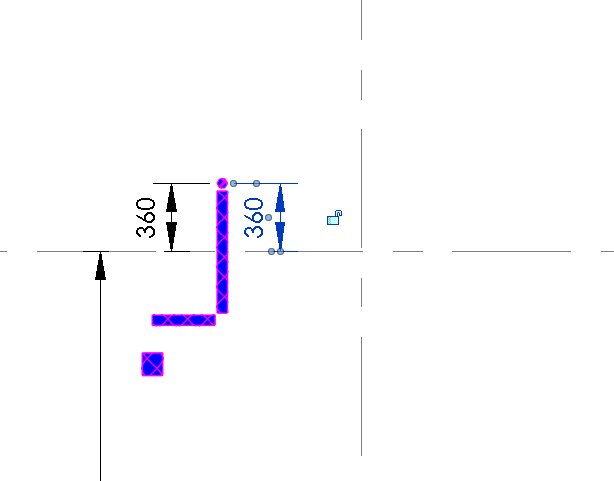

image614×481 3.26 KB

I am trying to dimension all pipes in a plan view, but the tool only picks up vertical pipes. What could I be doing wrong ?

2

Hi @MJAIMAN2024, great question! You can dimension horizontal pipes in plan view by checking the following settings:

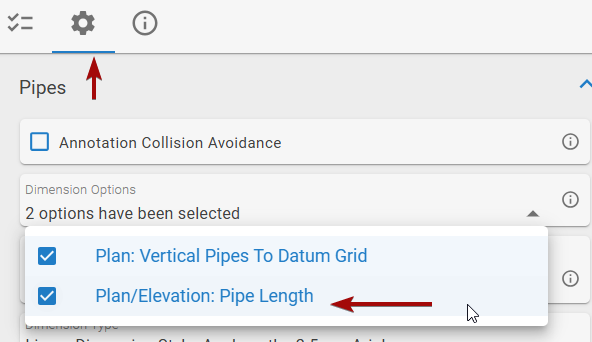

Pipe Settings
Pipe Settings592×342 19.2 KB

Thanks,
Miguel

3

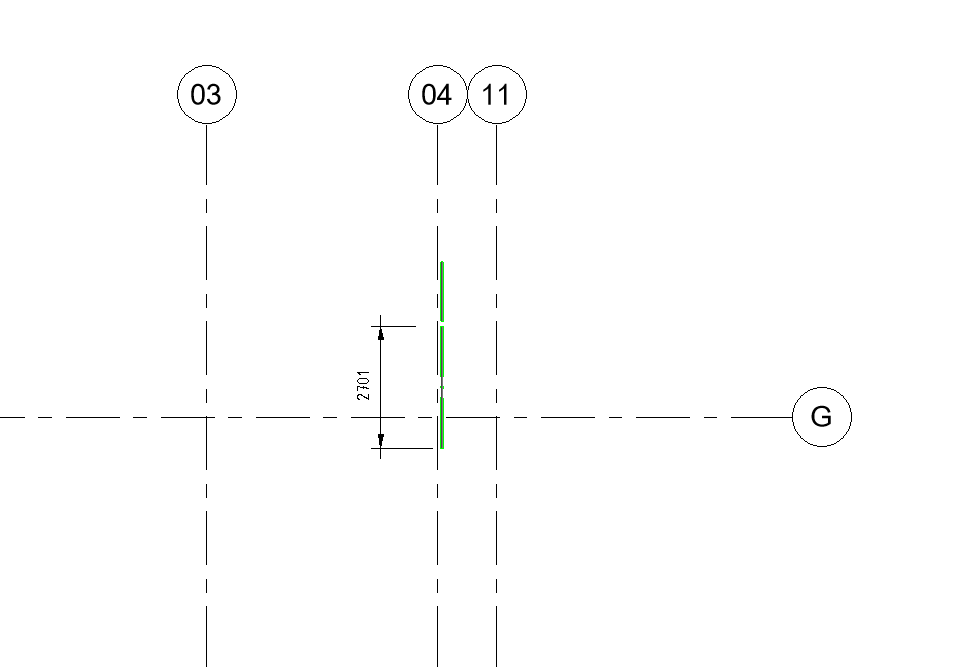

image957×669 3.5 KB

Thanks Miguel, is there also a way to dimension the pipe location to gridline. Currently , I am only able to dimension the pipe length.

4

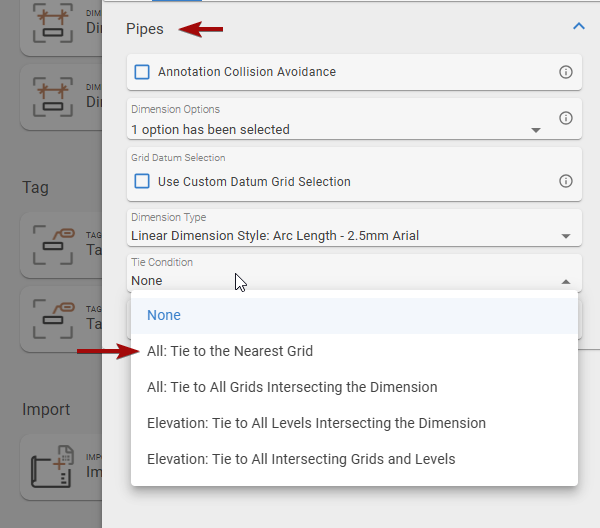

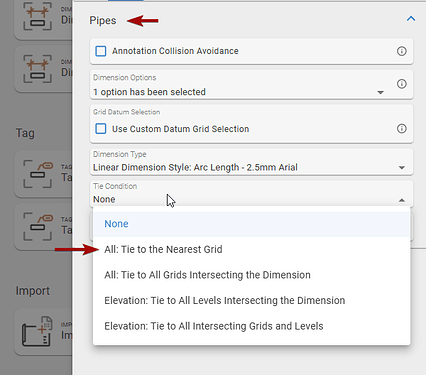

@MJAIMAN2024, You can associate the dimension with the nearest grid by enabling the following option:

image600×528 33.7 KB
